Ultrasonic Plastic Cleaning Machine:

  1. Ultrasonic Cleaning Machines (Single Chamber)
    • - Ultrasonic Cleaner 250 Watt Size: 400mm x300mm x150mm: 18 lit
    • - Ultrasonic Cleaner 500 Watt Size: 500mm x400mm x200mm: 40 lit
    • - Ultrasonic Cleaner 750 Watt Size: 675mm x475mm x200mm: 63lit
    • - Ultrasonic Cleaner 1000Watt Size: 600mm x400mm x300mm: 75 litre
  1. Ultrasonic Cleaning Machines (Multi Chamber)

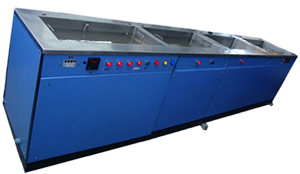

    • - Ultrasonic Cleaning Machine 4 Chamber 2000watt

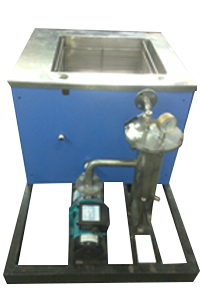

    • - Ultrasonic Cleaner + Filter 1000 watt
    • - Ultrasonic Cleaner + Dryer + Filter 500watt/1000watt/1500watt

Specifications for Ultrasonic Cleaning Machine

  • Generator

    • IGBT Based advanced technology, solid state.


  • Timer

    • Digital timer programmable between 0 to 99 min.
    • In step of 1Minute.
    • To set the ultrasonic ON time.


  • Heater & Temperature Controller

    • Heater will be provided with digital temperature controller to control the solvant temperature at 50 degree centigrade.
    • A Separate ON/OFF switch will be provided for heater.


  • Construction of equipment

    • Tank will be made up of SS 304, 16 gage material.
    • All bends of tank would be rounded @ radius of R10.
    • A lid will be provided for the tank, which would be made of SS304, 16 gage materials.
    • Drain: 1/2 "ss ball valve will be provided for solvent drain.
    • Equipment body will be made of SS material.


  • Basket / tray

    • A basket would be made of SS 304; 2 mm wire size & 1/2 inch Hole size.
    • Basket will be provided with handles at both the sides for easy handling.


  • Additional features

    • Powerful & reliable cleaning
    • Built in microprocessor
    • Built in digital thermometer & timer to set optimum conditions.
    • Built in drain valve unit.
    • Silicon rubber heater for durability & stability.
    • Built in alarm function for noticing operation STOP.
